Description

The Large Case Denso Hairpin 300 Amp XP Cast Case series Custom Billet Aluminum high output alternator is a component of a next generation high efficiency, severe duty charging system specifically engineered for DC Power Engineering. This system consists of a 300 Amp alternator and internal regulator. The alternator produces a maximum of 300 amps and will produce a minimum of 170 amps continually at low idle speeds and maximum output above 1800 engine RPM. The alternator has a maximum efficiency in excess of 75 percent. The rectifier is mounted onboard the alternator and consists of 12 50 amp press fit diodes. The brush holder assembly and slip ring are environmentally protected and the bearings are heavy-duty, oversized premium bearings. The alternator housings are precision-machined cast aluminum and all components are of OEM quality. All major components being carefully chosen for maximum performance and reliability.

Technology

This new charging system features an advanced proprietary stator winding of a new design that maximizes efficiency with near 80 percent sectional density of the winding coupled with very low coil resistance. This gives the alternator maximum low speed output, as well as a 90% reduction of magnetic pulsation with the stator windings built in cancel circuit to minimize electrical noise. The internal regulator is a proprietary design advanced multifunction digital regulator that completely integrates into the vehicles PCM through the OEM wiring harness to retain all vehicle specific functions such as internal temperature compensation, lamp terminal monitoring, load response control, and alternator load factor.

Mounting

The Large Case Denso Hairpin 300 Amp XP series alternator is specially designed to mount directly in the OEM mounting location with no modification. All electrical connections shall be in the original locations. The alternator features a custom machined drive pulley for increased output at idle speeds and retains OEM belt length. The pulley is 6 Groove Hard Anodized 6061 Billet Aluminum and hard anodized coating for wear resistance and durability.

Performance

The AD244 OEM alternator is rated at 145 amps with 85 amps at idle. The supplied alternator makes 190 amps at normal idle. The vehicle needs a maximum of 100 amps to supply existing electrical loads with all accessories on leaving little room for additional accessories. The supplied alternator will supply an additional 85 amps of available output at hot idle output, and 105 amps additional at cold idle output, and up to 125 amps at highway speeds.

Durability

Mounting Type	Direct fit to OEM Mounting
Output Voltage	PCM Controlled
Idle Amperage	209
Hot Idle Amperage @ 200ºF	170
Max Amperage	300
Hot Max Amperage @ 200ºF	240
Positive Output Stud Size	8MM x 1.25 Copper
Temperature Compensation	Yes with 3-Step Thermal Protection
Rectifier	12 50 amp press fit diodes
Rectifier Heatsink	Aluminum
Pulley	6 Groove Hard Anodized 6061
Doesn't affect vehicles PCM, Check Engine Light or Charge Light	Yes - Direct plug-in OEM PCM Compliant
Warranty Duration	2 Year Standard Replacement
SKU	8302-300 -XP-Cast

HOLIDAY CLOSURE: DEC 20 - JAN 4

SEARCH

SEARCH

Cadillac

Menu

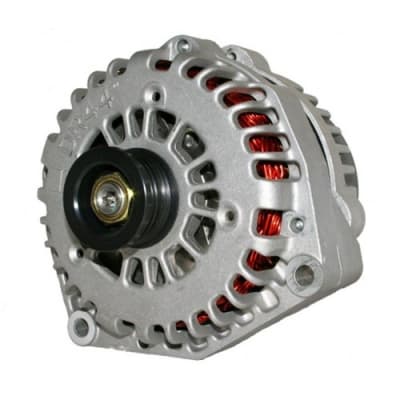

1999-2006 Chevy Silverado AD 270 High Amp SP series alternator

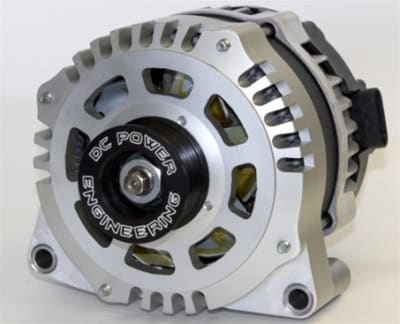

8206-270XP High Output Alternator for Cadillac, Chevrolet, GMC, Oldsmobile and Pontiac

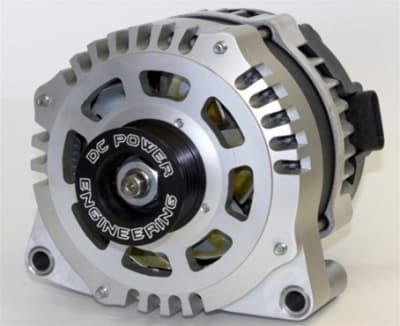

8219-270XP High Output Alternator for Cadillac, Chevrolet and GMC

DC Power 8206-300 Amp SPX High Amp Alternator for Escalade, Astro Van, Blazer, S-10, Ck, Tahoe, Suburban, Camaro, Yukon, Jimmy, Firebird

8292HP-240A 240 Amp High Output Alternator for 2000-2010 Buick, Cadillac, Chevrolet, GMC, Hummer, Isuzu, Saab SUV 4.3L - 8.1L

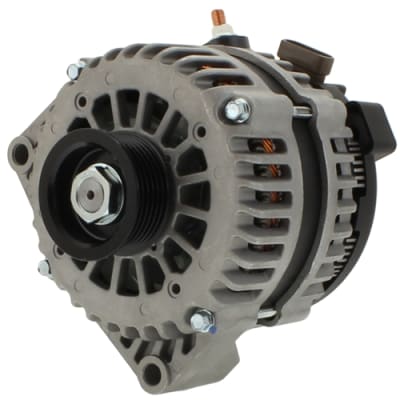

8302HP-240A 240 Amp High Output Alternator for 2005-2008 Cadillac, Chevrolet Pickups, GMC Light Trucks

8292HP-270A 270 Amp High Output Alternator for 2000-2010 Buick, Cadillac, Chevrolet, GMC, Hummer, Isuzu, Saab SUV 4.3L - 8.1L

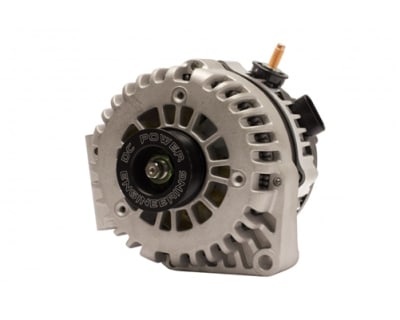

11069-270XP 270 Amp High Output Alternator for Chevrolet Malibu 3.5L, 3.9L

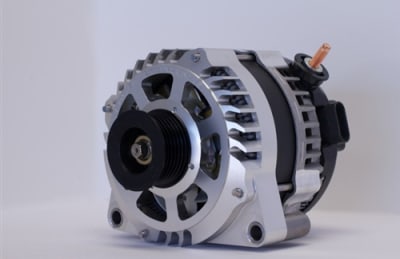

11234-270XP 270 Amp High Output Alternator for Chevrolet Silverado HD and GMC Sierra 6.6L Duramax Diesel

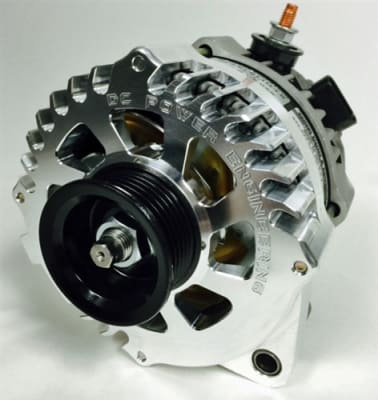

8165-270XP 270 Amp High Output Alternator

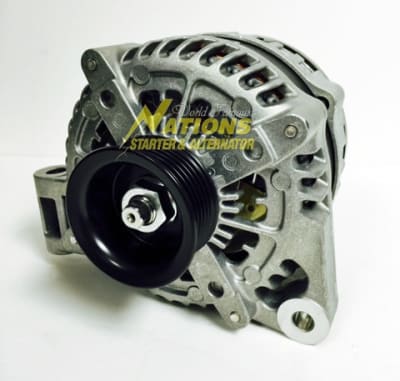

11252-270XP 270 Amp High Output Alternator for 3.6L Chevy, GMC, Saturn, Buick Applications

11513-270XP High Output Alternator for Cadillac CTS-V 6.2L (2009-2015)

8237-240HP High Amp Alternator for Hummer, Escalade, S-10, Blazer, Silverado, Avalanche, Suburban, Tahoe, Astro Van, Express Van, SSR, Sonoma, Sierra, Yukon, Savana

8302-270XP 270 Amp High Output Alternator for Buick, Cadillac, Chevrolet, GMC, Hummer and Saab (Custom Billet Aluminum Version)

DC Power 8237-270 Amp XP High Amp Alternator for Hummer, Escalade, S-10, Blazer, Silverado, Avalanche, Suburban, Tahoe, Astro Van, Express Van, SSR, Sonoma, Sierra, Yukon, Savana (Billet Aluminum Version)

8302-270XP 270 Amp High Output Alternator for Buick, Cadillac, Chevrolet, GMC, Hummer and Saab (Cast Version)

8237-270 Amp XP High Amp Alternator for Hummer, Escalade, S-10, Blazer, Silverado, Avalanche, Suburban, Tahoe, Astro Van, Express Van, SSR, Sonoma, Sierra, Yukon, Savana (Cast Version)

8302-300XP 300 Amp High Output Alternator for Buick, Cadillac, Chevrolet, GMC, Hummer and Saab (Cast Version)

8237-300 Amp XP High Amp Alternator for Hummer, Escalade, S-10, Blazer, Silverado, Avalanche, Suburban, Tahoe, Astro Van, Express Van, SSR, Sonoma, Sierra, Yukon, Savana (Cast Version)

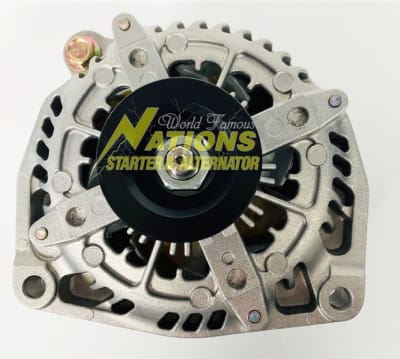

11785-270XP 270 Amp High Output Alternator for Chevrolet & GMC Applications (2017-2018)

8302-300XM 300 Amp High Output Alternator for Buick, Cadillac, Chevrolet, GMC, Hummer and Saab

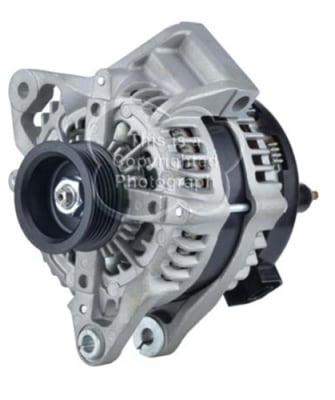

13919-275XP High Amp Alternator for 2001-2005 Cadillac Deville & Seville Northstar V8
