Ford Transit Van Dual Alternator Kit with 48 Volt 100 Amp Alternator and Wakespeed WS500 Regulator & Harness

Fits 2020-2022 Ford Transit 3.5L with PFDI & EcoBoost
Fits: 2023-2025 Ford Transit with EcoBoost Only

VIEW DATASHEET

The only approved batteries for this Dual Alternator kit are Victron with Lynx and Lithionics.

What does your dual alternator kit come with?

Complete Dual Alternator mounting bracket and parts with complete Installation Instructions
48 Volt 100 Amp Alternator
Highest Quality Parts
Runs Alternator with approved Ford Transit parts
Wakespeed WS500 Advanced Regulator & simplified click-n-go wiring harness for easy installation

What are the benefits of the 48 Volt HPX Series Secondary Alternator system?

100 Amp Max Output (Software Regulated)
5.5KW Plus Max output produced safely to protect battery system
CAN enabled charging system closed loop for safest lithium systems
Components designed with High Energy systems in mind from OE designed components
Hairpin high efficiency windings and 12 diode dual bridge internal rectifier
Custom Housings with E-Coating for protection from the elements
Dual internal fan cooling, steel reinforced inserts in mounting ears
Dedicated ground, temp sensor threaded bosses in custom designed housings
Motor grade bearings for maximum dependability and service
Simply the best compact application specific alternator on the market

Why run dual alternators?

The factory alternator does what it is designed for, recharging the factory battery and supporting the factory electrical needs.
Dedicated charging system for your separate electrical system
Compatibility with smart regulators to monitor and protect the alternator and batteries.
Professionally engineered bracketry to adapt to modern engines
High charge at idle
Faster recharge of batteries saving time and fuel
Generator replacement- using your existing engine with a Nations Alternator gives you unlimited power without adding any additional fuel or engine
Reliability- Nations has the experience and quality to last under the harshest conditions

Wakespeed WS500 Advanced Regulator

In a resounding departure from the vast majority of multi-stage voltage-only regulators currently available, the WS500 uses a unique approach to charge control by factoring multiple criteria - battery voltage, current in, current out, battery temperature, alternator temperature - resulting in a smarter approach to battery and system care. Highly configurable and able to communicate via J1939 CAN protocol, the WS500 provides superior charging efficiency and safety along with the singular ability to address the specific needs of newer battery technologies like LiFePO4 and similar chemistries.

Ideal for RV applications, some exclusive features of the WS500 include:

Active regulation of voltage, current, and temperatures to assure proper battery charging while protecting the system - including ensuring battery C rate is never exceeded without needing to artificially restrict the alternator capacity.

Zero Output Technology allows alternators to continue to power house loads after the battery is fully changed.
Adaptive Idle Technology reduces alternator load at lower engine RPMs to minimize impact on performance.
Auto-adjusts for 12, 24, 48/51 volt systems and allows advanced user-configuration for system voltages in between.
CAN communication for ease of install and reliable measurement of critical battery and system information such as: battery amperage/voltage, alternator and battery temperature, battery capacity and status, electrical and engine loads
Full BMS and Operator Display compatibility using RV-C, OSEnergy and other protocols

HOLIDAY CLOSURE: DEC 20 - JAN 4

SEARCH

SEARCH

Ford Transit

Menu

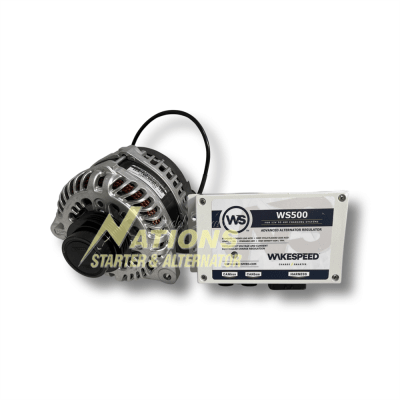

TK35-250XM High Amp Alternator for Ford Transit with Factory Dual Alternators

Dual Alternator Kit with 12V 280XP Alternator Kit for 2023 - 2024 Ford Transit Van 3.5L with PFDI

Ford Transit Van Dual Alternator Kit with 48 Volt 100 Amp Alternator and Wakespeed WS500 Regulator & Harness (2020-2025)

Dual Alternator Kit with 12 Volt 280XP Alternator for 2020 - 2025 Ford Transit Van 3.5L

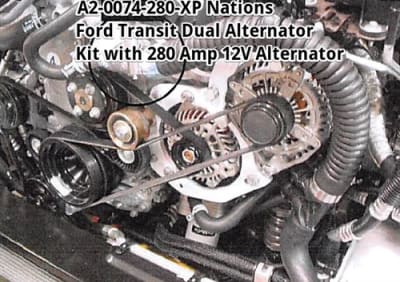

Dual Alternator Kit with 280XP Alternator for 2015-Up Ford Transit Van 3.2L Diesel
