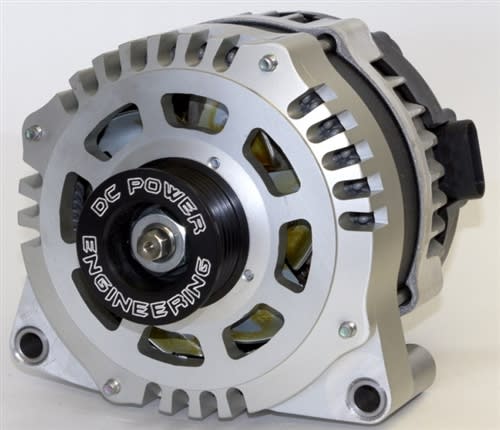

DC Power 8237-270 Amp XP High Amp Alternator for Hummer, Escalade, S-10, Blazer, Silverado, Avalanche, Suburban, Tahoe, Astro Van, Express Van, SSR, Sonoma, Sierra, Yukon, Savana (Billet Aluminum Version)
DC Power 8237-270 Amp XP High Amp Alternator for Hummer, Escalade, S-10, Blazer, Silverado, Avalanche, Suburban, Tahoe, Astro Van, Express Van, SSR, Sonoma, Sierra, Yukon, Savana





Price: $689.95

Product Code: 8237-270XP-BILLET


Alternator:

Color Options


Cable Kit Upgrade


Warranty



Qty:
DESCRIPTION FITMENTS


FEATURES
Our XP series high-output alternators are the ultimate upgrade when you need the absolute biggest and most sophisticated high output alternator on the planet. All of our XP series alternators are designed for one purpose, brute force idle output. When you need the most extreme idle output with the most sophisticated integrated alternator-monitoring system to prevent thermal failures is where the XP alternator delivers. Every Nations product we sell is held to the strictest quality standards in the industry. We only use 100% brand new USA made components along with one of the most rigorous testing before each individual alternator leaves our shop. Each XP series alternator comes standard with our custom hard-anodized billet aluminum pulley and 2-year replacement warranty. If you're looking for a significant overall increase in top end and idle output, the XP series alternator is your solution.

Quick Overview

Mounting Type Direct fit to OEM Mounting
Output Voltage 14.8
Idle Amperage 200
Hot Idle Amperage @ 200F 180
Max Amperage 270
Hot Max Amperage @ 200F 250
Pulley 6 Groove Hard Anodized 6061
Doesn't affect vehicles PCM, Check Engine Light or Charge Light Yes - Direct plug-in OEM PCM Compliant
SKU 8237-270-XP
Positive Output Stud Size 8MM x 1.25 Copper
Temperature Compensation Yes with 3-Step Thermal Protection
Rectifier 12 50 amp press fit diodes
Rectifier Heatsink Aluminum
Warranty Duration 2 Years


Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 2 Write a review.

  1 of 1 people found the following review helpful:

5 of 5 Nations 270 high amp for Roadtrek RV March 19, 2017
Reviewer: Peter from Minnesota
We have a Roadtrek RV built on the 3500 Express van, with the Nations 270 high amp alternator and the Balmar external regulator - Roadtrek markets this as their "Underhood Generator". At van idle of 500 RPM I measured the alternator at 1830 RPM with a laser tach. From the chart at this RPM the alternator output is approx 160 amps or 2200 watts at 14 volts. We routinely cook a meal with the convection microwave which draws approx 1800 watts from the inverter - alternator has no problem providing the power. Awesome product!

Was this review helpful to you?

  1 of 1 people found the following review helpful:

5 of 5 for 8237-270 for 2004 blazer August 22, 2013
Reviewer: SPENCER ROH from DUNDALK, MD United States
exceptional performance low +high rpms .  will hold 14.7v with all equip. on. even with pcm controlled idle rpm's of 550 rpm.  appearance very nice. cannot verify max output when cold of 270 amps but it seems to drop only a little when hot and alt.  still maintains output very well.a bit of a hassle to find the correct belt size but did find the best size.         spencer

Was this review helpful to you?
