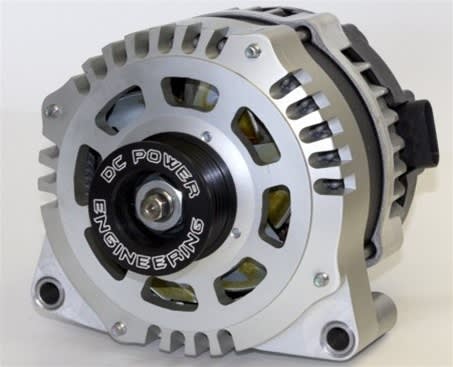

8302-270XP 270 Amp High Output Alternator for Buick, Cadillac, Chevrolet, GMC, Hummer and Saab (Custom Billet Aluminum Version)

$
Choose your options:
Alternator:
Color Options
Cable Kit Upgrade
Cable Kit Upgrade:
Warranty
Product Code: 8302-270-XP-Billet


Description

The Large Case Denso Hairpin 270 Amp XP series Custom Billet Aluminum high output alternator is a component of a next generation high efficiency, severe duty charging system specifically engineered for DC Power Engineering. This system consists of a 270 Amp alternator and internal regulator. The alternator produces a maximum of 270 amps and will produce a minimum of 170 amps continually at low idle speeds and maximum output above 1800 engine RPM. The alternator has a maximum efficiency in excess of 75 percent. The rectifier is mounted onboard the alternator and consists of 12 50 amp press fit diodes. The brush holder assembly and slip ring are environmentally protected and the bearings are heavy-duty, oversized premium bearings. The alternator housings are precision-machined cast aluminum and all components are of OEM quality. All major components being carefully chosen for maximum performance and reliability.

Technology

This new charging system features an advanced proprietary stator winding of a new design that maximizes efficiency with near 80 percent sectional density of the winding coupled with very low coil resistance. This gives the alternator maximum low speed output, as well as a 90% reduction of magnetic pulsation with the stator windings built in cancel circuit to minimize electrical noise. The internal regulator is a proprietary design advanced multifunction digital regulator that completely integrates into the vehicles PCM through the OEM wiring harness to retain all vehicle specific functions such as internal temperature compensation, lamp terminal monitoring, load response control, and alternator load factor.

Mounting

The Large Case Denso Hairpin 270 Amp XP series alternator is specially designed to mount directly in the OEM mounting location with no modification. All electrical connections shall be in the original locations. The alternator features a custom machined drive pulley for increased output at idle speeds and retains OEM belt length. The pulley is 6 Groove Hard Anodized 6061 Billet Aluminum and hard anodized coating for wear resistance and durability.

Performance

The AD244 OEM alternator is rated at 145 amps with 85 amps at idle. The supplied alternator makes 190 amps at normal idle. The vehicle needs a maximum of 100 amps to supply existing electrical loads with all accessories on leaving little room for additional accessories. The supplied alternator will supply an additional 85 amps of available output at hot idle output, and 105 amps additional at cold idle output, and up to 125 amps at highway speeds.

Durability

Mounting TypeDirect fit to OEM Mounting
Output VoltagePCM Controlled
Idle Amperage190
Hot Idle Amperage @ 200ºF170
Max Amperage270
Hot Max Amperage @ 200ºF240
Positive Output Stud Size8MM x 1.25 Copper
Temperature CompensationYes with 3-Step Thermal Protection
Rectifier12 50 amp press fit diodes
Rectifier HeatsinkAluminum
Pulley6 Groove Hard Anodized 6061
Doesn't affect vehicles PCM, Check Engine Light or Charge LightYes - Direct plug-in OEM PCM Compliant
Warranty Duration2 Year Standard Replacement
SKU8302-270-XP-Billet





2007 Buick Rainier 5.3L V82007 Cadillac Escalade 6.2L V82008 Cadillac Escalade 6.2L V82009 Cadillac Escalade 6.2L V82010 Cadillac Escalade 6.2L V82011 Cadillac Escalade 6.2L V82006 Chevrolet Trailblazer SS 6.2L V82007 Chevrolet Trailblazer SS 6.2L V82008 Chevrolet Trailblazer SS 6.2L V82009 Chevrolet Trailblazer SS 6.2L V82007 Chevrolet Silverado 4.3L V62008 Chevrolet Silverado 4.3L V62009 Chevrolet Silverado 4.3L V62010 Chevrolet Silverado 4.3L V62011 Chevrolet Silverado 4.3L V62007 Chevrolet Silverado 4.8L V82008 Chevrolet Silverado 4.8L V82009 Chevrolet Silverado 4.8L V82010 Chevrolet Silverado 4.8L V82011 Chevrolet Silverado 4.8L V82007 Chevrolet Silverado 5.3L V82008 Chevrolet Silverado 5.3L V82009 Chevrolet Silverado 5.3L V82010 Chevrolet Silverado 5.3L V82011 Chevrolet Silverado 5.3L V82012 Chevrolet Silverado 5.3L V82013 Chevrolet Silverado 5.3L V82014 Chevrolet Silverado 5.3L V82015 Chevrolet Silverado 5.3L V82016 Chevrolet Silverado 5.3L V82017 Chevrolet Silverado 5.3L V82007 Chevrolet Silverado 6.0L V82008 Chevrolet Silverado 6.0L V82009 Chevrolet Silverado 6.0L V82010 Chevrolet Silverado 6.0L V82011 Chevrolet Silverado 6.0L V82007 Chevrolet Avalanche 5.3L V82008 Chevrolet Avalanche 5.3L V82009 Chevrolet Avalanche 5.3L V82010 Chevrolet Avalanche 5.3L V82011 Chevrolet Avalanche 5.3L V82007 Chevrolet Avalanche 6.0L V82008 Chevrolet Avalanche 6.0L V82009 Chevrolet Avalanche 6.0L V82010 Chevrolet Avalanche 6.0L V82011 Chevrolet Avalanche 6.0L V82007 Chevrolet Tahoe 4.8L V82008 Chevrolet Tahoe 4.8L V82009 Chevrolet Tahoe 4.8L V82010 Chevrolet Tahoe 4.8L V82011 Chevrolet Tahoe 4.8L V82007 Chevrolet Tahoe 5.3L V82008 Chevrolet Tahoe 5.3L V82009 Chevrolet Tahoe 5.3L V82010 Chevrolet Tahoe 5.3L V82011 Chevrolet Tahoe 5.3L V82007 Chevrolet Tahoe 6.2L V82008 Chevrolet Tahoe 6.2L V82009 Chevrolet Tahoe 6.2L V82010 Chevrolet Tahoe 6.2L V82011 Chevrolet Tahoe 6.2L V82007 Chevrolet Suburban 5.3L V82008 Chevrolet Suburban 5.3L V82009 Chevrolet Suburban 5.3L V82010 Chevrolet Suburban 5.3L V82011 Chevrolet Suburban 5.3L V82007 Chevrolet Suburban 6.0L V82008 Chevrolet Suburban 6.0L V82009 Chevrolet Suburban 6.0L V82010 Chevrolet Suburban 6.0L V82011 Chevrolet Suburban 6.0L V82007 Chevrolet Trailblazer 5.3L V82008 Chevrolet Trailblazer 5.3L V82009 Chevrolet Trailblazer 5.3L V82007 GMC Sierra 4.8L V82008 GMC Sierra 4.8L V82009 GMC Sierra 4.8L V82010 GMC Sierra 4.8L V82011 GMC Sierra 4.8L V82007 GMC Sierra 5.3L V82008 GMC Sierra 5.3L V82009 GMC Sierra 5.3L V82010 GMC Sierra 5.3L V82011 GMC Sierra 5.3L V82007 GMC Sierra 6.0L V82008 GMC Sierra 6.0L V82009 GMC Sierra 6.0L V82010 GMC Sierra 6.0L V82011 GMC Sierra 6.0L V82007 GMC Sierra 6.2L V82008 GMC Sierra 6.2L V82009 GMC Sierra 6.2L V82010 GMC Sierra 6.2L V82011 GMC Sierra 6.2L V82007 GMC Yukon 4.8L V82008 GMC Yukon 4.8L V82009 GMC Yukon 4.8L V82010 GMC Yukon 4.8L V82011 GMC Yukon 4.8L V82007 GMC Yukon 5.3L V82008 GMC Yukon 5.3L V82009 GMC Yukon 5.3L V82010 GMC Yukon 5.3L V82011 GMC Yukon 5.3L V82007 GMC Yukon 6.0L V82008 GMC Yukon 6.0L V82009 GMC Yukon 6.0L V82010 GMC Yukon 6.0L V82011 GMC Yukon 6.0L V82007 GMC Yukon XL 5.3L V82008 GMC Yukon XL 5.3L V82009 GMC Yukon XL 5.3L V82010 GMC Yukon XL 5.3L V82011 GMC Yukon XL 5.3L V82007 GMC Yukon XL 6.0L V82008 GMC Yukon XL 6.0L V82009 GMC Yukon XL 6.0L V82010 GMC Yukon XL 6.0L V82011 GMC Yukon XL 6.0L V82007 GMC Yukon XL 6.2L V82008 GMC Yukon XL 6.2L V82009 GMC Yukon XL 6.2L V82010 GMC Yukon XL 6.2L V82011 GMC Yukon XL 6.2L V82007 GMC Envoy 5.3L V82008 GMC Envoy 5.3L V82009 GMC Envoy 5.3L V82008 Hummer H2 6.2L V82009 Hummer H2 6.2L V82008 Hummer H3 5.3L V82009 Hummer H3 5.3L V82007 Saab 9-7x 5.3L V82008 Saab 9-7x 5.3L V82009 Saab 9-7x 5.3L V82018 Chevrolet Express Van 4.3L2019 Chevrolet Express Van 4.3L
