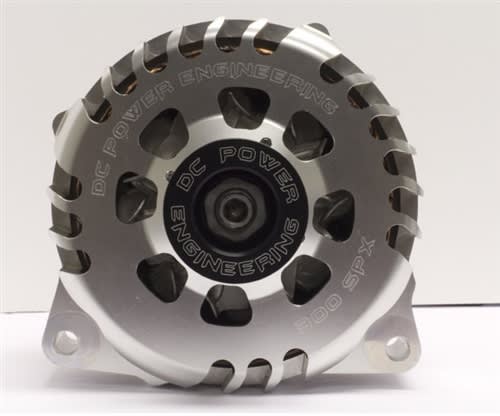

DC Power 8206-300 Amp SPX High Amp Alternator for Escalade, Astro Van, Blazer, S-10, Ck, Tahoe, Suburban, Camaro, Yukon, Jimmy, Firebird
DC Power 300 Amp SPX High Amp Alternator for Escalade, Astro Van, Blazer, S-10, Ck, Tahoe, Suburban, Camaro, Yukon, Jimmy, Firebird

Alternate Views:


Base Price: $649.95


Product Code: 8206-300SPX
This product is no longer available. Please call 888-334-2632 for comparable options.

DESCRIPTION SPECIFICATIONS APPLICATIONS

 ';
PRODUCT FEATURES

Description

The Large Case DC Power300 Amp SPX series high output alternator is a component of a next generation high efficiency, severe duty charging system specifically engineered for DC Power Engineering. This system consists of a 300 Amp alternator and internal regulator. The alternator produces a maximum of 300 amps and will produce a minimum of 195 amps continually at low idle speeds and maximum output above 1800 engine RPM. The alternator has a maximum efficiency in excess of 75 percent. The rectifier is mounted onboard the alternator and consists of 12 75 amp press fit bosch diodes. The brush holder assembly and slip ring are environmentally protected and the bearings are heavy-duty, oversized premium bearings. The alternator housings are precision-machined cast aluminum and all components are of OEM quality. All major components being carefully chosen for maximum performance and reliability.

Quick Overview

Mounting Type Direct fit to OEM Mounting
Output Voltage 14.8
Idle Amperage 225
Hot Idle Amperage @ 200ºF 195
Max Amperage 300
Hot Max Amperage @ 200ºF 250
Positive Output Stud Size 8MM x 1.25 Copper
Temperature Compensation Yes with 3-Step Thermal Protection
Rectifier 12 75 amp press fit bosch diodes
Rectifier Heatsink Aluminum
Pulley 6 Groove Hard Anodized 6061 Billet Aluminum
Doesn't affect vehicles PCM, Check Engine Light or Charge Light Yes - Direct plug-in OEM PCM Compliant
Warranty Duration 2 Year Standard Replacement
SKU 8206-300-SPX
