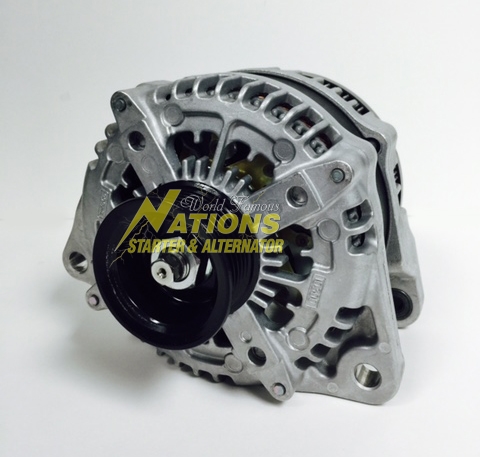

11532-300XP High Amp Alternator for Ford F-150 and Mustang with 5.0L (2011-2017)
11532-300XP High Amp Alternator for Ford F-150 and Mustang with 5.0L (2011-2017)

Base Price: $699.95

Price with Selected Options: $699.95


Product Code: 11532-300XP

Color Options


Cable Kit Upgrade


Warranty



Qty:
DESCRIPTION SPECIFICATIONS APPLICATIONS


PRODUCT FEATURES



300 AMP ALTERNATOR | FORD MUSTANG 5.0L

2011-2017


The XP Series high-output alternators are designed for incredible durability and performance under any circumstance. Before releasing to the general public, Nations has put the 300 Amp XP series alternator through vigorous testing to ensure that they hold up to our strict standards. All of our alternators come standard with our 2-year warranty. If you're looking for a significant overall increase in top end and idle output, the XP series alternator is your solution to your needs.



Quick Overview

Mounting Type Direct fit to OEM Mounting
Output Voltage PCM Controlled
Idle Amperage 209
Hot Idle Amperage 200F 193
Max Amperage 300
Hot Max Amperage 200F 260
Pulley 6 Groove Pulley
Doesn't affect vehicles PCM, Check Engine Light or Charge Light Yes - Direct plug-in OEM PCM Compliant
SKU 11352-300XP
Stator Configuration 6 Phase Hairpin
Average A/C Ripple Current 3 Amps
Positive Output Stud Size 8MM x 1.25 Copper
Temperature Compensation Yes with 3-Step Thermal Protection
Rectifier 12 50 amp press fit diodes
Rectifier Heatsink Aluminum
Warranty Duration 2 Years

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 2 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 Replacement Alternator October 18, 2022
Reviewer: Michael Seck from St. Louis, MO United States
Just what the doctor ordered! The increased amps at idle was the solution to all the added electronics. Excellent choice and rapid shipping in multilayered boxes cushioned with foam.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

5 of 5 17 Mustang Alternator September 21, 2017
Reviewer: Jonathan Brafford from Belews Creek, NC United States
Above expectations on shipping and performed with performance and install to OE. Have recommended to many already.

Was this review helpful to you?
