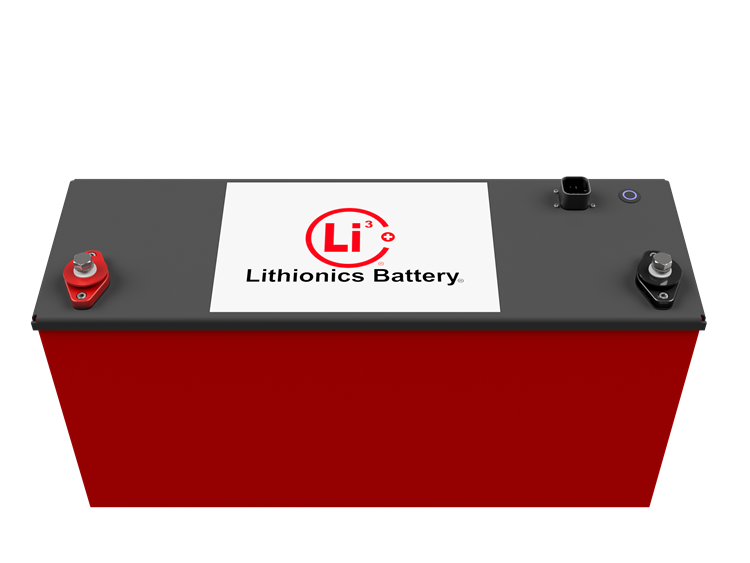

Lithionics 12 Volt 315AH E2107 GTX Battery with Built in Heater
Lithionics 12 Volt 315AH E2107 GTX Battery with Built in Heater

Alternate Views:


Base Price: $4,499.00

Price with Selected Options: $4,499.00


Product Code: GTX12V315A-E2107-CS200

Build your package



Qty:
DESCRIPTION


PRODUCT FEATURES

12 Volt 315AH E2107 GTX Battery with Built in Heater

Voltage: 12.8 Volts

MODEL NUMBER: GTX12V315A-E2107-CS200


DOWNLOAD DATA SHEET



ENERGY:


315 AMP HOURS
PULSE AMPS: 3150 (1 SEC)
4032 WATT-HOURS



INTERNAL NEVERDIE FEATURES:



  • MiniBMS Cell/Module Sensors and Microprocessors with Automatic Cell Balancing

  • NeverDie Power Reserve (Spare Fuel) for Hotel Loads and Worry-Free Power for Engine Cranking

  • 100% Pure Copper Power Transmission (No Restrictive Nickel, Aluminum, or MOSFETS)

  • UL Approved Temperature Protection System

  • UL Approved Fully Redundant Protective Safety Circuits

  • Over-Charge, Over-Discharge and Short-Circuit Protection (LVC, HVC, SCC)

  • Military Grade/Military Approved Hermetically-Sealed UL508 Approved Gas-Filled Pure Silver-Alloy Contactor with Aux-Contact Monitoring Circuit and Internal Arc-Suppression.

  • Available NeverDie Internal Heating Kit: Permits Charging Operations at -20C -4F Continuous (Most Models, Please Confirm with Factory)

  • Pushbutton Storage Operation







Model:
GTX12V315A-E2107-CS200
Nominal Voltage:
12.8 Volts
Nominal Capacity:
315 AH
Nominal Watt Hours:
4032 WH
Internal Resistance:
<300 milliohms
Charge
Charging temperature range:
32F/0C to 113F/45C
Charge voltage:
14.4V
Recommended float charge voltage:
13.4V
Recommended charge current:
157.5A
Allowed max charge current:
250A
Discharge
Discharging temperature range:
-4F/-20C to 131F/55C
Output Voltage Range:
11.6V to 13.4V
Recommended discharge current:
200 AH
Max discharge current:
250 AH
Pulse discharge current:
1575 Amps (1 SEC)
Discharge cut-off voltage:
NeverDie Power Reserve @ 12.00V Low-Voltage Cut-Off @11.60V

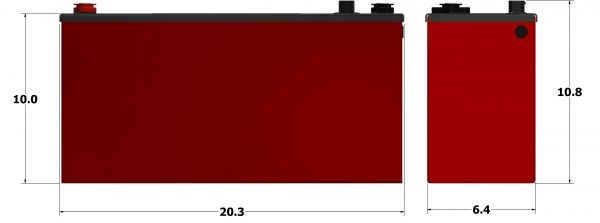

Mechanical characteristics
Length:
20.3in
Width:
6.4in
Height:
10.0in
Weight:
Approx. 68lbs (30.8kg)
Storage
Storage Temperature & Humidity Range:
< 1 Month
-4 - 95F (-20~35C), 45~75%RH
< 3 Months
14 - 86F (-10 - 30C), 45~75%RH
Recommended storage
59 - 95F (15 - 35C),45%RH - 75%RH
Self-discharge rate:
Residual capacity
=3% per month; =15% per year
Reversible capacity
=1.5%per month; =8% per year
Long Term Storage:

If the battery needs to be stored for > 3 months the voltage should be 13.2V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
