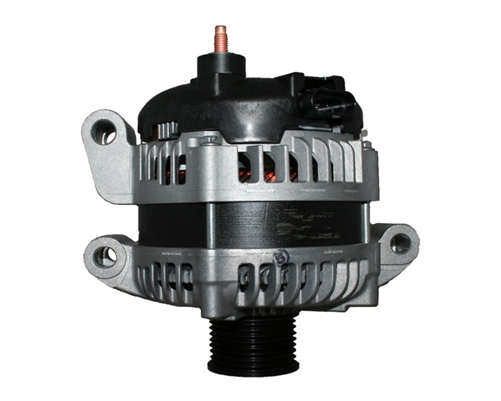

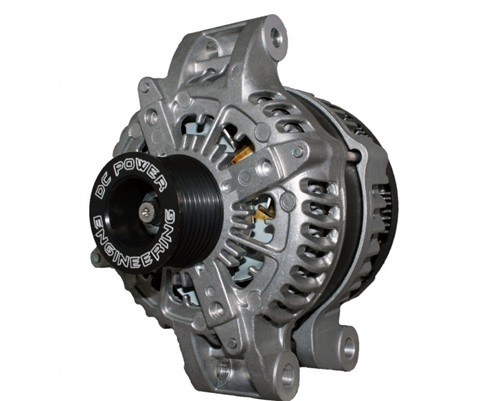

DescriptionThe Large Case Denso Hairpin 270 Amp XP series high output alternator is a component of a next generation high efficiency, severe duty charging system specifically engineered for Nations Starter and Alternator. This system consists of a 300 Amp alternator and internal regulator. The alternator produces a maximum of 270 amps and will produce a minimum of 170 amps continually at low idle speeds and maximum output above 1800 engine RPM. The alternator has a maximum efficiency in excess of 75 percent. The rectifier is mounted onboard the alternator and consists of 12 50 amp press fit diodes. The brush holder assembly and slip ring are environmentally protected and the bearings are heavy-duty, oversized premium bearings. The alternator housings are precision-machined cast aluminum and all components are of OEM quality. All major components being carefully chosen for maximum performance and reliability. |
TechnologyThis new charging system features an advanced proprietary stator winding of a new design that maximizes efficiency with near 80 percent sectional density of the winding coupled with very low coil resistance. This gives the alternator maximum low speed output, as well as a 90% reduction of magnetic pulsation with the stator windings built in cancel circuit to minimize electrical noise. The internal regulator is a proprietary design advanced multifunction digital regulator that completely integrates into the vehicles PCM through the OEM wiring harness to retain all vehicle specific functions such as internal temperature compensation, lamp terminal monitoring, load response control, and alternator load factor. |
MountingThe Large Case Denso Hairpin 300 Amp XM series alternator is specially designed to mount directly in the OEM mounting location with no modification. All electrical connections shall be in the original locations. The alternator features a custom machined drive pulley for increased output at idle speeds and retains OEM belt length. The pulley is 6 Groove Hard Anodized 6061 Billet Aluminum and hard anodized coating for wear resistance and durability. |
PerformanceThe Ford OEM alternator is rated at 130 amps with 80 amps at idle. The supplied alternator makes 190 amps at normal idle. The vehicle needs a maximum of 100 amps to supply existing electrical loads with all accessories on leaving little room for additional accessories. The supplied alternator will supply an additional 90 amps of available output at hot idle output, and 110 amps additional at cold idle output, and up to 140 amps at highway speeds. |
DurabilityThe Large Case Denso Hairpin 270 XP series alternator is manufactured to the highest quality standards in the USA with premium USA made or sourced components for the highest quality possible. All of our high output alternator's parts are carefully chosen for the maximum durability, dependability and proven performance in the field. |
| Mounting Type | Direct fit to OEM Mounting w/ Supplied Bracket |
| Output Voltage | 14.8 |
| Idle Amperage | 190 |
| Hot Idle Amperage @ 200ºF | 170 |
| Max Amperage | 300 |
| Hot Max Amperage @ 200ºF | 240 |
| Positive Output Stud Size | 8MM x 1.25 Copper |
| Temperature Compensation | Yes with 3-Step Thermal Protection |
| Rectifier | 12 50 amp press fit diodes |
| Rectifier Heatsink | Aluminum |
| Pulley | 6 Groove Hard Anodized 6061 Billet Aluminum |
| Doesn't affect vehicles PCM, Check Engine Light or Charge Light | Yes - w/ Supplied Adapter Harness |
| Warranty Duration | 2 Year Standard Replacement |
| SKU | 8407-270XP |
