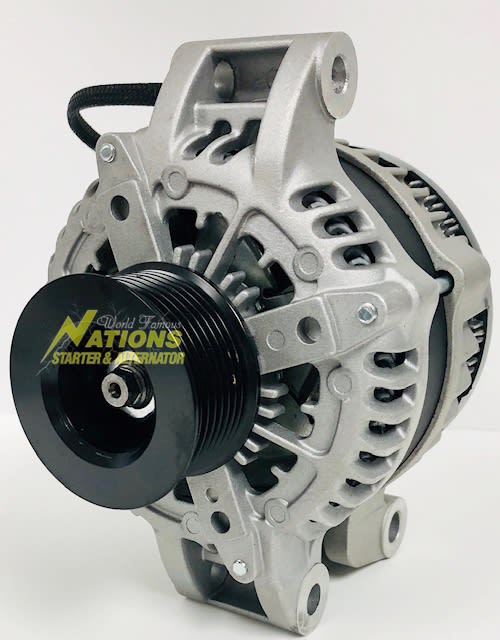

8307-200XP High Amp Diesel Alternator for Ford Trucks and SUVs 6.0L & 7.3L
8307-200XP High Amp Diesel Alternator for Ford Trucks and SUVs 6.0L & 7.3L

Alternative Views:

Price: $369.95

Product Code: 8307-200XP


Color Options

Cable Kit Upgrade



8307-200XP High Amp Diesel Alternator for Ford Trucks and SUVs 6.0L & 7.3L

Our XP series high-output alternators are the ultimate upgrade when you need the absolute biggest and most sophisticated high output alternator on the planet. All of our XP series alternators are designed for extreme reliability. When you need the most extreme idle output with the most sophisticated integrated alternator-monitoring system to prevent thermal failures is where the XP alternator delivers. Every Nations product we sell is held to the strictest quality standards in the industry. We only use 100% brand new USA made components along with one of the most rigorous testing before each individual alternator leaves our shop. Each XP series alternator comes standard with our custom hard-anodized billet aluminum pulley and 2-year replacement warranty. If you're looking for a significant overall increase in top end and idle output, the XP series alternator is your solution.

Quick Overview

Mounting Type Direct fit to OEM Mounting
Output Voltage PCM Controlled
Idle Amperage 120
Hot Idle Amperage 200F 120
Max Amperage 200
Hot Max Amperage 200F 160
Pulley Hard Anodized 6061 Billet Aluminum
Doesn't affect vehicles PCM, Check Engine Light or Charge Light Yes - w/ Supplied Adapter Harness
SKU 8307-200XP
Stator Configuration 6 Phase Hairpin
Average A/C Ripple Current 8 Amps
Positive Output Stud Size 8MM x 1.25 Copper
Temperature Compensation Yes with 3-Step Thermal Protection
Rectifier 12 40 amp press fit diodes
Rectifier Heatsink Copper
Warranty Duration 2 Years

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 Write a review.

  0 of 0 people found the following review helpful:
5 of 5 Fast Shipping! Easy Install May 13, 2020
Reviewer: Bill Seltzer from Murfreesboro, TN
My order was shipped out the same day!  When i received my alternator it was foam packed and double boxed, perfect out of the box.  The install was easy as just swapping out the stock alternator.  So far, the alternator is working great!  Fantastic price and excellent customer service!
