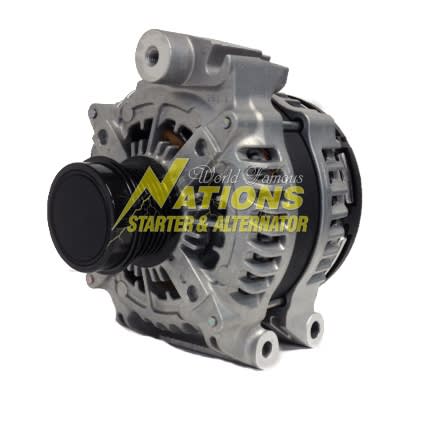

270 Amp High Output Alternator for 2014-2021 Dodge Ram Promaster Work & Cargo Van 3.6L (For Stock Location Only)



2014-2021 Ram Promaster Work & Cargo Van 3.6L (For Stock Location Only)

---

The XP Series high-output alternators are designed for incredible durability and performance under any circumstance. Before releasing to the general public, Nations has put the 270 Amp XP series alternator through vigorous testing on the 3.6L V6 Pentastar engine to ensure that they hold up to our strict standards. All of our alternators come standard with our 2-year warranty. If you're looking for a significant overall increase in top end and idle output, the XP series alternator is your solution to your needs.

Quick Overview

Mounting Type	Direct fit to OEM Mounting
Output Voltage	PCM Controlled
Idle Amperage	180
Hot Idle Amperage @ 200F	165
Max Amperage	270
Hot Max Amperage @ 200F	230
Pulley	6 Groove Litens Decoupler Pulley
Doesn't affect vehicles PCM, Check Engine Light or Charge Light	Yes - Direct plug-in OEM PCM Compliant
SKU	NSA-DPM-3.6-270XP
Stator Configuration	6 Phase Hairpin
Average A/C Ripple Current	3 Amps
Positive Output Stud Size	8MM x 1.25 Copper
Temperature Compensation	Yes with 3-Step Thermal Protection
Rectifier	12 50 amp press fit diodes
Rectifier Heatsink	Aluminum
Warranty Duration	2 Years

Fits the Following Applications:

2014|Dodge| Ram Promaster|3.6L
2015|Dodge|Ram Promaster|3.6L
2016|Dodge|Ram Promaster|3.6L
2017|Dodge|Ram Promaster|3.6L
2018|Dodge|Ram Promaster|3.6L
