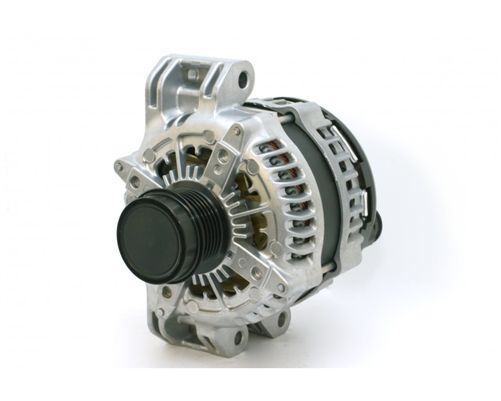

The XP Series high-output alternators are designed for incredible durability and performance under any circumstance. Before releasing to the general public, Nations has put the 270 Amp XP series alternator through vigorous testing on the 3.6L V6 Pentastar engine to ensure that they hold up to our strict standards. All of our alternators come standard with our 2-year warranty. If you're looking for a significant overall increase in top end and idle output, the XP series alternator is your solution to your needs.
Quick Overview
| Mounting Type | Direct fit to OEM Mounting |
| Output Voltage | PCM Controlled |
| Idle Amperage | 180 |
| Hot Idle Amperage @ 200ºF | 165 |
| Max Amperage | 270 |
| Hot Max Amperage @ 200ºF | 230 |
| Pulley | 6 Groove Litens Decoupler Pulley |
| Doesn't affect vehicles PCM, Check Engine Light or Charge Light | Yes - Direct plug-in OEM PCM Compliant |
| SKU | 11570-270-XP |
| Stator Configuration | 6 Phase Hairpin |
| Average A/C Ripple Current | 3 Amps |
| Positive Output Stud Size | 8MM x 1.25 Copper |
| Temperature Compensation | Yes with 3-Step Thermal Protection |
| Rectifier | 12 50 amp press fit diodes |
| Rectifier Heatsink | Aluminum |
| Warranty Duration | 2 Years |
