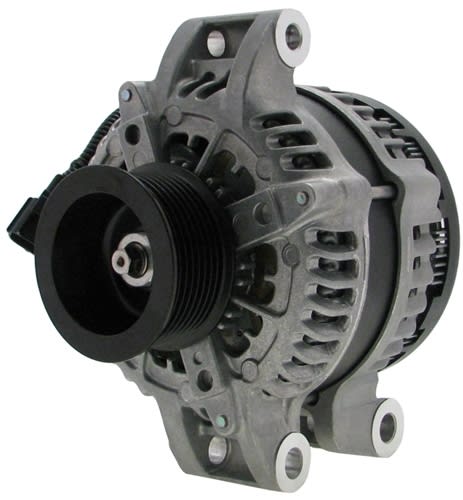

11290HP-270A 270 Amp High Output Alternator for 2008-2010 Ford F-Series Super Duty 6.4L Diesel
11290HP-270A 270 Amp High Output Alternator for 2008-2010 Ford F-Seires Super Duty 6.4L Diesel

Base Price: $599.95


Product Code: 11290HP-270A
Qty:

DESCRIPTION APPLICATIONS


PRODUCT FEATURES




POWERFUL AND RELIABLE - 2 characteristics that are demanded by high output alternator applications. Field tested, abused and re-tested, the Nations HP Series alternators meet those demands.  Custom designed, these alternators have been re-engineered and upgraded from OEM designs and are one of the industry’s most reliable and true high output units.


FEATURES

- Unmatched charging curve at idle! 200 Amps at idle!

- Hair Pin, 6 phase stator maximizes slot fill

- OEM engineered to produce high output (Not a “Pumped Up” Unit)

-12 press fit 70A diodes with welded leads

- Unmatched heat recovery

- Super high heat bearings with 200 + degree seals & synthetic grease

- 96 slot stator compared to 36 slot provides superieor efficiency

- Shaft design accepts passive, IDP and OWC pulley designs

- Universal regulator circuit adapts to internal or external sensing as well

  as PCM or ignition excitation with lamp control

- Unique rectifier design allows for 3 different output post positions


Comes with a 2 Year Warranty!
