Product Description
|

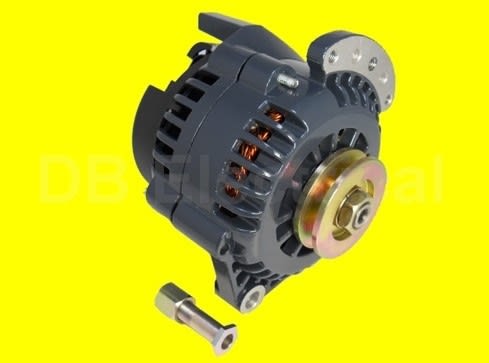

Brand New 220 Amp Powder Coated
1-Wire Marine Alternator from DB Electrical
Our HO-Marine Series of alternators is the answer for your higher amperage marine needs. Available in outputs ranging from 160-amp to 220-amp at 12 volts, our HO-Marine Series alternators provide the electrical power you need for increased electrical loads.
Available in 2 mounting configurations:
Single Foot 1-Inch to replace most Motorola and Prestolite models
Single Foot 2-Inch with our special adaptor to convert to replace most Delco models
The multi-hole adjusting ears provide for a universal fit with several options with slight bracket modifications.
Self Energizing, One-Wire Hookup – you will need only the main charging wire connected. Output is automatically regulated at 14.2 Volts for constant battery charge and maintenance.
Tach / AC-Stator Wire included with pigtail for easy connection
Powder Coated with our special ‘Gun Metal Gray’ coating to resist corrosion (tested Salt Spray results = 1,000+ Hours)
Available in Single V-Groove, or 6 Groove Serpentine Pulley.
Coast Guard Approved - ISO 8846, J1171
Covered By Our One Year Warranty!
|
| Applications: |
Crusader
|
Various Models |
| Mercruiser |
Various Models |
| OMC |
Various Models |
| Pleasurecraft |
Various Models |
| Volvo Penta |
Various Models |
| Specifications: |
| Voltage: |
12 Volts |
| Amps: |
220 Amps Full Output at 1200 engine RPM
110 Amps Output at idle - 650 engine RPM |
| Output Stud Dimensions: |
M8-1.25 |
| Pulley: |
3/8 Inch Single V-Groove |
| Regulator: |
1-Wire Self Exciting - Internally Regulated |
| New or Remanufactured: |
Brand New with a 1-Year Warranty |
| Case Construction: |
Ventilated cast aluminum - High-Impact plastic rear cover |
| Finish: |
Special 'Gun Metal Gray' coating to resist corrosion
(Tested Salt Spray results = 1,000+ Hours) |
| Cooling: |
Dual Internal Fans |
| Bearings: |
Sealed ball bearings - Heavy Duty Radial |
| Tension Adusting Arm: |
5 Position Crown |
| Grounding: |
12 Volt Negative Ground |
| Stator / AC Tach Output: |
12 pulse - Stator wire Pigtail from rear cover with connector |
| Ignition Protection Rated: |
ISO 8846, J1171 |
| Approximate Weight: |
12 lbs |
| Warrranty: |
1 Year limited |
| Replaces these part numbers: |
| API |
20051, 20054, 20104 |
| ARCO |
20102, 60050 |
| DELCO |
1100576, 1100577, 1100894, 1100912, 1100914, 1100915, 1102393,
1102496, 321-621 |
| MANDO |
AC155603, AC155604, AR150, AR150AA, AR150AR, AR150BA
A000B0331, AC155603 |
| MARINE POWER |
1210-000 |
| MERCURY |
56045, 59755, 69729, 12449, 19685, 817119, 817119-1, 817119A1, 817119A4,
98555, 817119-2, 78403A2, 78477, 92497A3 |
| OMC |
983424, 983836, 988247, 3854182, 3853853, 3854809, 987774,
985465, 983424, 985466, 984565, 986008, 3860769, 982364 |
| PRESTOLITE |
MOST MODELS WITH 1 INCH OR 2 INCH MOUNTING FOOT |
| SIERRA |
18-5957, 18-5951, 18-5965, 18-5966 |
| VOLVO PENTA |
3854809-5, 3854182-7, 3853853-4, 3850927-9 |
| UNIVERSAL |
MANY OTHER MODELS WITH SLIGHT MODIFICATION OF MOUNTING BRACKETS |
|
|
|
 |
|
 |
|
|
|
